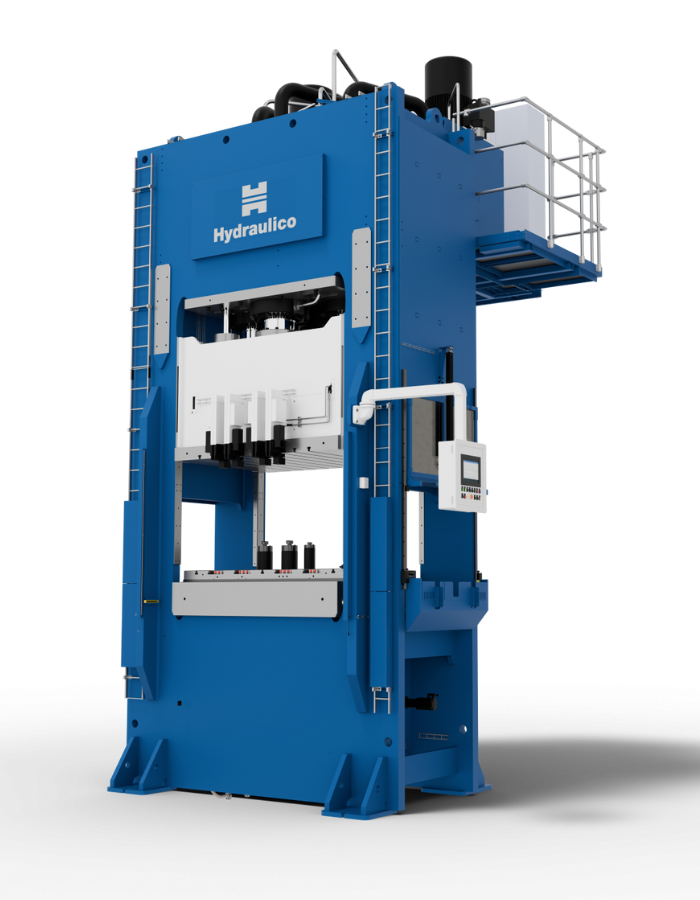

Deep Draw Press
Hydraulico began more than 80 years ago in deep drawing and has built a strong reputation, starting in the household market. Whether you make revolution, rectangular or irregular parts, we design top-tier press solutions with cushions, active punches or inner rams to match the application.
Why material flow matters in a deep draw press
Consistent deep drawing depends on controlled material flow. You get this through reliable lubrication and the right blank holding force distribution. The more complex the part, the more critical these two factors become.
Precise lubrication
For revolution parts, an even layer of lubricant across the blank is often sufficient. For complex parts, a computerized sectorial lubricator is needed to apply a precise concentration to the correct location on the blank for consistent results.
Blank holding force distribution
For revolution parts, the press applies a uniform blank holding force that can ramp up or down through the draw to control flow and stretch. For rectangular or irregular parts, forces must vary around the blank. We can use a multi-cylinder setup with Independent Pressure Control (IPC) and Electronic Shimming (ES) to create asymmetric forces and optimize flow.
IPC:
Constantly and independently adjusts pressure on each blank holding cylinder to the targeted value at each point in the draw.
ES:
Replaces manual shimming with a programmable hydraulic system that applies localized and controlled force in real time during the draw.
Precise lubrication
For revolution parts, an even layer of lubricant across the blank is often sufficient. For complex parts, a computerized sectorial lubricator is needed to apply a precise concentration to the correct location on the blank for consistent results.
Blank holding force distribution
For revolution parts, the press applies a uniform blank holding force that can ramp up or down through the draw to control flow and stretch. For rectangular or irregular parts, forces must vary around the blank. We can use a multi-cylinder setup with Independent Pressure Control (IPC) and Electronic Shimming (ES) to create asymmetric forces and optimize flow.
IPC:
Constantly and independently adjusts pressure on each blank holding cylinder to the targeted value at each point in the draw.
ES:
Replaces manual shimming with a programmable hydraulic system that applies localized and controlled force in real time during the draw.
Deep drawing with high quality
Sinks, bathtubs, wheel barrows, concrete mixers – Hydraulico presses customized to your production!
Hydraulico’s unique Electronic ShimmingTM Technology guarantees optimum blanket control. The system eliminates wrinkles and cracks in the finished parts, and reduces scrap rates.
Benefits
Over the years Hydraulico has become a worldwide leader in deep draw processes. Working with us you can enjoy the following benefits:
- Potential energy savings up to 70%
- Higher productivity with fast changeovers and on-the-fly adjustments
- Better quality with deeper draws, more homogeneous thickness and lower internal stresses
- Increased profitability via smaller or thinner blanks, reduced scrap and easier
Applications
- Sinks, bathtubs and shower trays
- Pressure vessels and cylinders such as gas bottles, fire extinguishers and tanks
- Defense parts such as nose cones and housings
- Cookware and food trays
- Wheelbarrows, concrete mixers and lawn mowers
- Automotive and motorcycle
- Appliances
Product examples
Double bowl sinks
Extra-deep single bowl sinks, round
Wheelbarrows
Extra-deep single bowl sinks, square
The facts about the best press for deep drawing
- Electronic Shimming™ on all press models
- Higher production capacity
- Substantially reduced scrap rates
- Forming of final part in just one draw
- No wrinkles or scratches
- Fast die changes
- Automated production lines available
